14 Ancillary Services

Requirements

Figure 137 illustrates the IFM daily average ancillary service requirement for regulation up, regulation down, spinning and non-spinning. Figure 138 shows the IFM hourly average ancillary service requirement for regulation up and regulation down.

Figure 137: IFM (Day-Ahead) Average Ancillary Services Requirement

IFM (Day-Ahead) Average Ancillary Services Requirement

Figure 138: IFM (Day-Ahead) Hourly Average Regulation Requirement

IFM (Day-Ahead) Hourly Average Regulation Requirement

Procurements

Figure 139 illustrates the IFM daily average procurement of regulation up, spinning and non-spinning ancillary services, while Figure 140 illustrates regulation down service procurement.

Figure 139: IFM (Day-Ahead) Average Upward Ancillary Services Procurement

IFM (Day-Ahead) Average Upward Ancillary Services Procurement

Figure 140: IFM (Day-Ahead) Average Regulation Down Procurement

IFM (Day-Ahead) Average Regulation Down Procurement

Figure 141 illustrates the real-time daily average procurement of upward ancillary services. It includes regulation up and regulation down procured in real-time unit commitment (RTUC), and spinning and non-spinning procured in RTUC. (Does not contain HASP like original metric catalog.)

Figure 141: Real-Time (FMM) Average Upward Ancillary Services Procurement

Real-Time (FMM) Average Upward Ancillary Services Procurement

Figure 142 illustrates the RTUC daily average procurement of regulation down.

Figure 142: Real-Time (FMM) Average Downward Ancillary Services Procurement

Real-Time (FMM) Average Downward Ancillary Services Procurement

The ISO procures 100 percent of its ancillary services requirements in the IFM (day-ahead) based on the IFM load forecast. Incremental procurement in the real-time market occurs under two scenarios: when ancillary services requirements have changed in real-time market motivated by a change in the real-time load forecast; if a unit which was awarded an ancillary service in IFM (day-ahead) is unable to provide that service in real-time. In the latter case, the market will automatically procure additional services as replacement.

Figure 143 displays the percentage of real-time procurement with respect to the IFM (day-ahead) procurement for all four types of ancillary services. The real-time procurement of regulation down and regulation up is actually the procurement in RTUC, while the real-time procurement of spinning and non-spinning is the sum of procurement in both RTUC and HASP. The percentage for each type of ancillary service is calculated as: (hourly average of real-time (RTUC and HASP) procurement in 15 minute intervals) / (hourly IFM (day-ahead) procurement).

Figure 143: Proportion of Real-Time Procurement as Percentage of Day-Ahead Requirement

Proportion of Real-Time Procurement as Percentage of Day-Ahead Requirement

Day-Ahead (IFM) and Real-Time (FMM) Average Prices

Figure 144 and Figure 145 illustrate the IFM daily and hourly average price for regulation up, regulation down, spinning and non-spinning ancillary services. The average price for each type of ancillary services is calculated as: sum (non-self scheduled AS MW * ancillary services marginal price $/MW (ASMP)) / sum (non-self scheduled AS MW).

Figure 144: IFM (Day-Ahead) Ancillary Service Average Price

IFM (Day-Ahead) Ancillary Service Average Price

Figure 145: IFM (Day-Ahead) Hourly Average Ancillary Service Price

IFM (Day-Ahead) Hourly Average Ancillary Service Price

Figure 146 illustrates the real-time (FMM) daily average price for ancillary services, including the average price for regulation up and regulation down procured in RTUC, and the average price for spinning and non-spinning procured in both RTUC and HASP. The average price for each type of ancillary services is calculated as: hourly average of [sum (non-self scheduled AS MW * ancillary services marginal price $/MW (ASMP)) / sum (non-self scheduled AS MW)] for each of the 15 minute intervals.

Figure 146: FMM (Real-Time) Ancillary Service Average Price

FMM (Real-Time) Ancillary Service Average Price

Average Regional Ancillary Service Shadow Prices

Figure 147 through Figure 150 display the IFM daily average regional ancillary service shadow prices (RASSPs) for regulation up, spinning, non-spinning and regulation down.

Figure 147: IFM (Day-Ahead) Average Regulation Up RASSP

IFM (Day-Ahead) Average Regulation Up RASSP

Figure 148: IFM (Day-Ahead) Average Spinning Reserve RASSP

IFM (Day-Ahead) Average Spinning Reserve RASSP

Figure 149: IFM (Day-Ahead) Average Non-Spinning Reserve RASS)

IFM (Day-Ahead) Average Non-Spinning Reserve RASS)

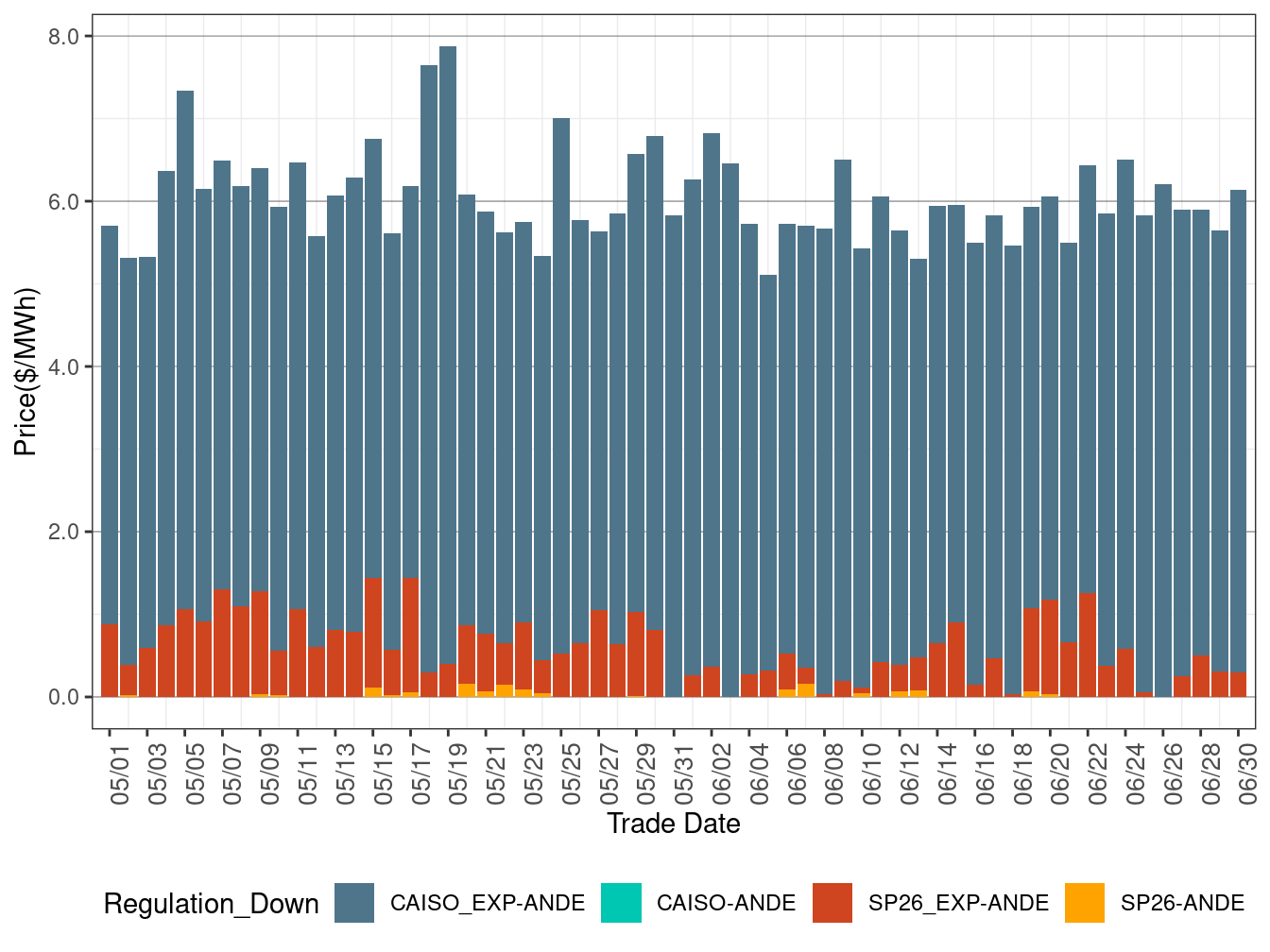

Figure 150: IFM (Day-Ahead) Average Regulation Down RASSP

IFM (Day-Ahead) Average Regulation Down RASSP
